Key Specifications and Ratings

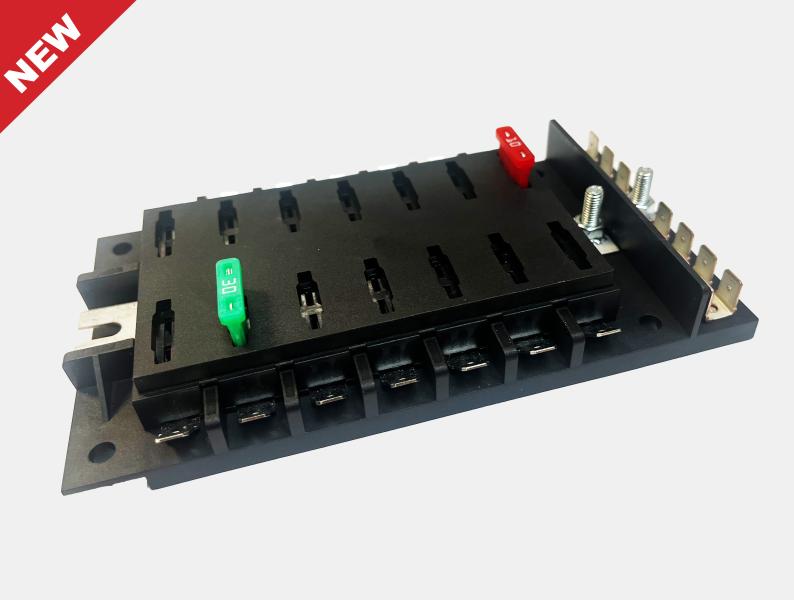

Consolidates 14 circuitsWith ground busFor use with high voltage blade fuses
Voltage Rating80VDC
Current Rating (Per Circuit)30A
Current Rating (Max Input)160A
Features and Application
- This fuse block compactly supplies power and grounding to new accessories and is convenient in boats or RVs that don’t have a chassis ground type system.
- Its 80VDC makes it perfect for higher voltage fuses, intended for use in higher voltage systems and vehicle electrical power systems designed for the 42V architecture.
- It provides circuit protection for 14 circuits with Regular (ATO/ATC style) blade fuses, with a rated current of 30A per position and 160A total for the fuse block.
Dimensions and 3D view
![image](https://www.optifuse.com/doc-for-web/Drawing-Vector-Images/BLC-114-G.png)
Dimensions
Length6.3
Height0.86
Width2.79
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
![image](https://www.optifuse.com/doc-for-web/Drawing-Vector-Images/BLC-114-G.png)
Dimensions
Length6.3
Height0.86
Width2.79
UnitInch
