BLR-710 Branch Fuse Block Integrating 10 Circuits Efficiently
Disclaimer Notice
Key Specifications and Ratings
Consolidates 10 circuitsIndependent circuitsSpace-saving compact design
Voltage Rating32VDC
Current Rating (Per Circuit)15A
Current Rating (Max Input)90A
Features and Application
- Consolidates 10 independently sourced branch circuits in one compact fuse block for Regular (ATO/ATC style) blade fuses. BLR-710 makes it convenient to combine switched and unswitched circuits on the same block.
- The rated current is 15A per position and the combined rating depends on the number of positions (please check the datasheet for more information).

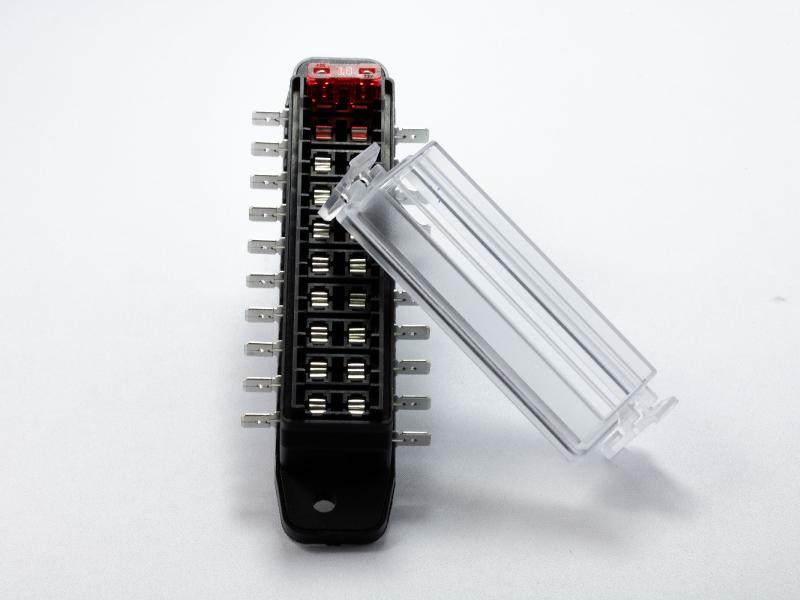

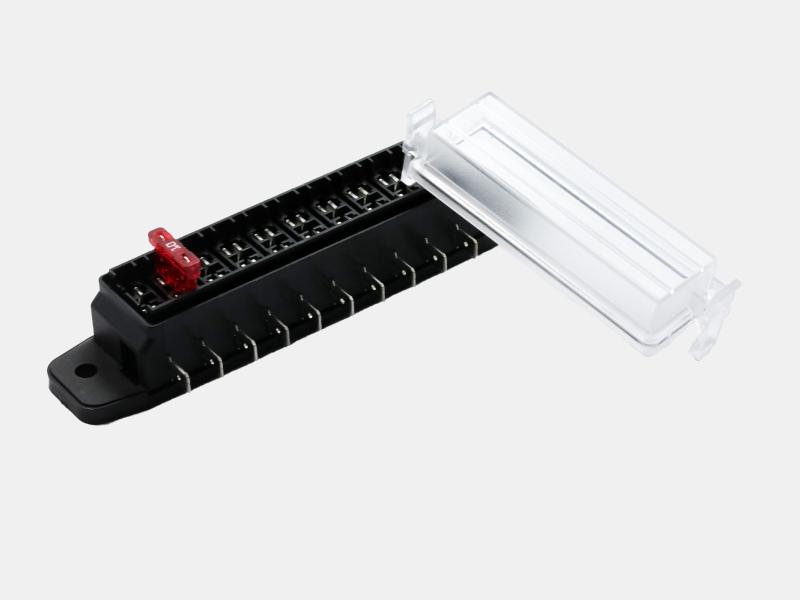

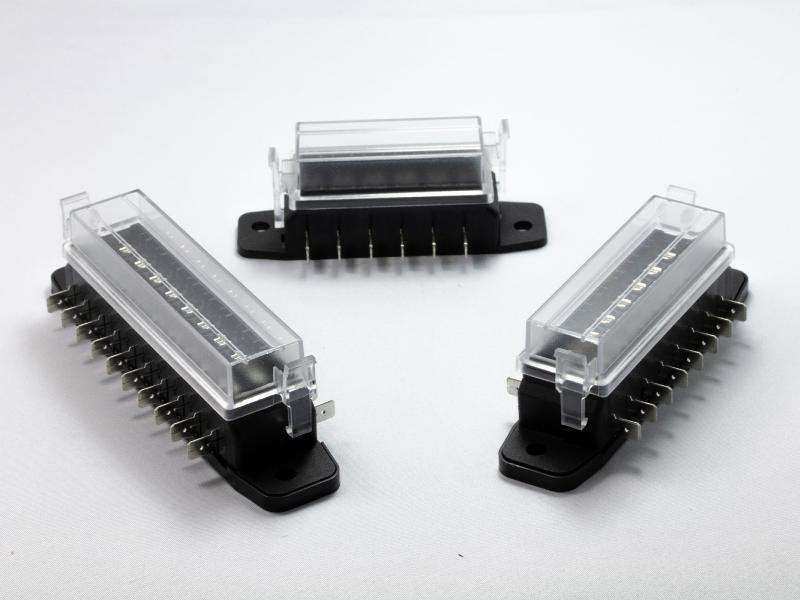

- Comes with an insulating cover that offers protection against short circuits, as well as from dirt, dust, and splashes.
Dimensions and 3D view
Dimensions
Length5.6
Height1.02
Width1.79
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length5.6
Height1.02
Width1.79
UnitInch
What is 3D CAD?
A 3D CAD (.STP) file ready to integrate into your project. Download and use it in your design software to streamline your workflow.
