Key Specifications and Ratings
Consolidates 4 circuitsCompact designComes with clear, insulating coverRetail Pack Quantity: 1PC
Voltage Rating32VDC
Current Rating (Per Circuit)30A
Current Rating (Max Input)100A
Features and Application

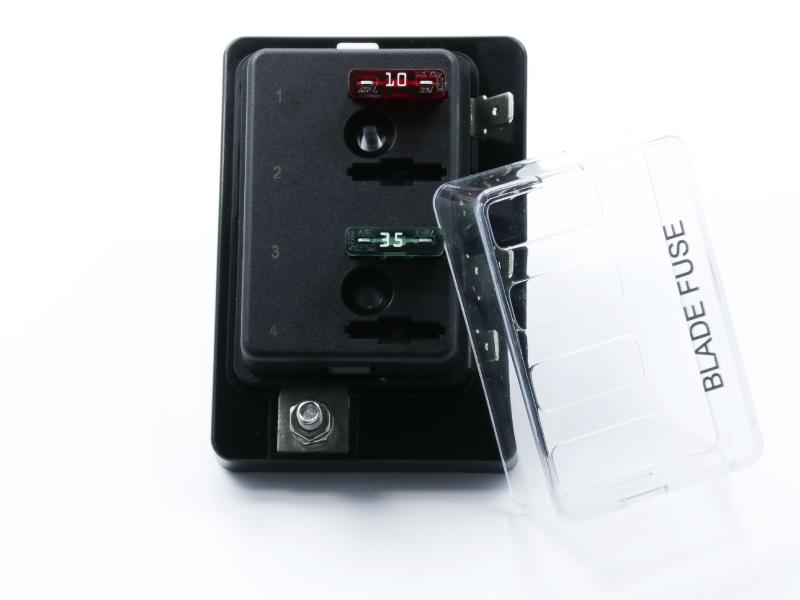

- Compact 4 positions fuse block for Regular (ATO/ATC style) blade fuses, with a rated current of 30A per position and 100A total for the fuse block.
- With single side design that allows wire entry from one side to minimize the block’s footprint.
- Comes with an insulating cover that offers protection against short circuits, as well as from dirt, dust, and splashes.
- NEW: Select products are available in attractive retail packaging including blister & clamshell packs and convenient multi amperage assortment packs.
Dimensions and 3D view
![image](https://www.optifuse.com/doc-for-web/Drawing-Vector-Images/BLR-604.png)
Dimensions
Length3.5
Height1
Width2.46
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
![image](https://www.optifuse.com/doc-for-web/Drawing-Vector-Images/BLR-604.png)
Dimensions
Length3.5
Height1
Width2.46
UnitInch
