Key Specifications and Ratings

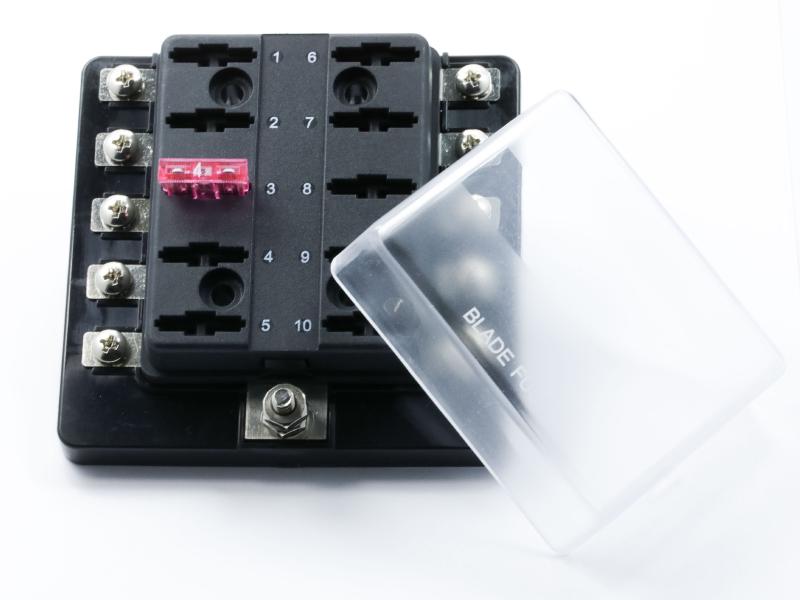

Consolidates 10 circuitsM4 screw input terminalsComes with clear, insulating cover
Voltage Rating32VDC
Current Rating (Per Circuit)30A
Current Rating (Max Input)100A
Features and Application
- Fuse block for Regular (ATO/ATC style) blade fuses used in DC distribution systems to provide compact circuit protection for 10 circuits, with a rated current of 30A per position and 100A total for the fuse block.
- Designed with screw terminals for secure wiring, which is especially beneficial in emergency vehicles.
- Comes with an insulating cover that offers protection against short circuits, as well as from dirt, dust, and splashes.
Dimensions and 3D view
![image](https://www.optifuse.com/doc-for-web/Drawing-Vector-Images/BLR-510.png)
Dimensions
Length3.74
Height1.02
Width3.94
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
![image](https://www.optifuse.com/doc-for-web/Drawing-Vector-Images/BLR-510.png)
Dimensions
Length3.74
Height1.02
Width3.94
UnitInch
