Key Specifications and Ratings
Consolidates 12 circuitsWith ground busSplit circuits bus
Voltage Rating32VDC
Current Rating (Per Circuit)30A
Current Rating (Max Input)100A
Features and Application
- Supplying power and grounding to new accessories, this fuse block provides circuit protection for 12 circuits with Regular (ATO/ATC style) blade fuses, with a rated current of 30A per position and 100A total for the fuse block.
- The split bus design allows for two isolated groups of circuits, which is convenient to combine switched and unswitched circuits on the same block.
- Designed with screw terminals for secure wiring, which is especially beneficial in emergency vehicles.

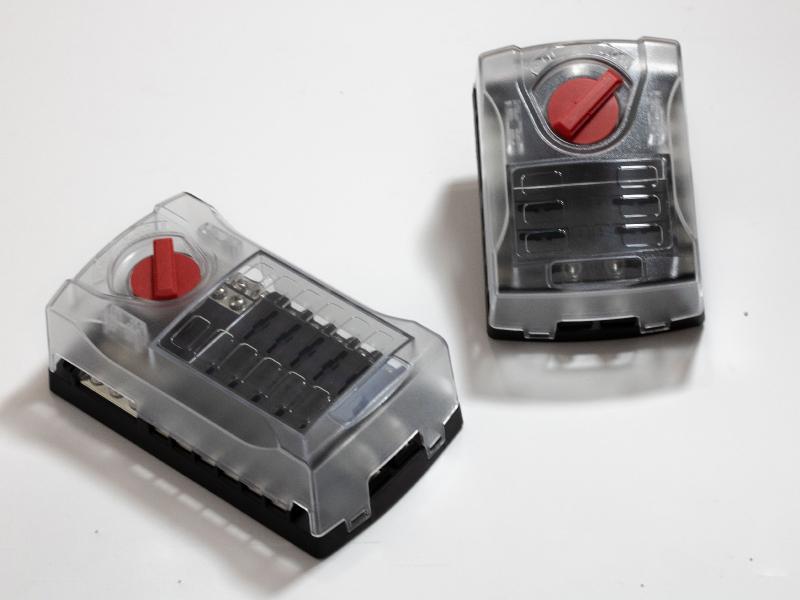

- Comes with an insulating cover that offers protection against short circuits, as well as from dirt, dust, and splashes.
Dimensions and 3D view
Dimensions
Length6.46
Height1.21
Width3.7
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length6.46
Height1.21
Width3.7
UnitInch
