Key Specifications and Ratings

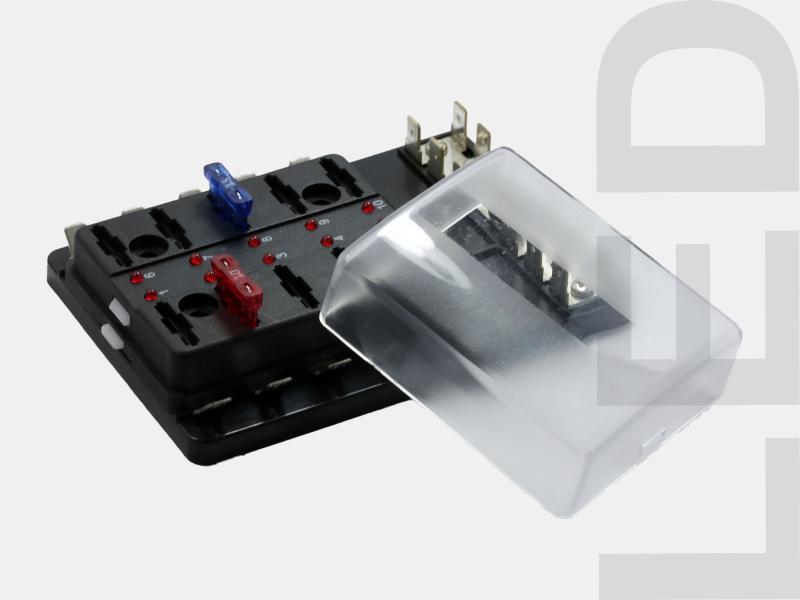

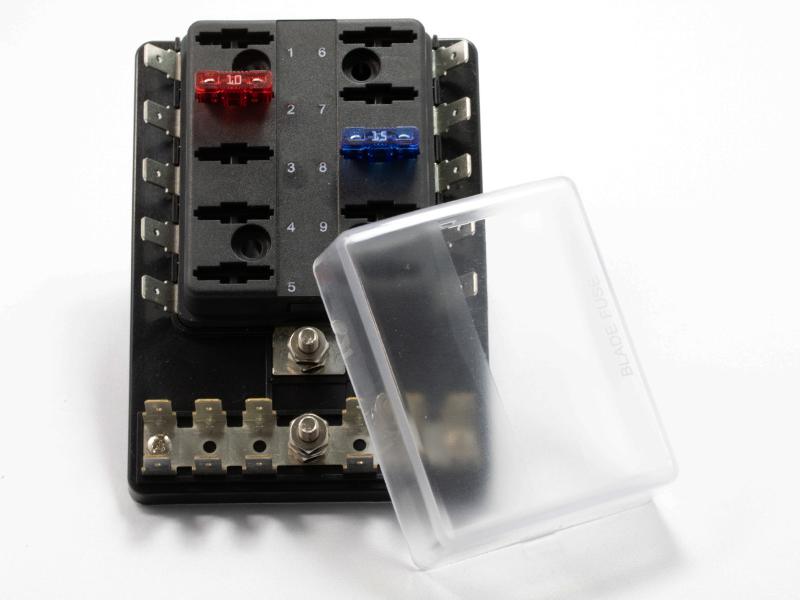

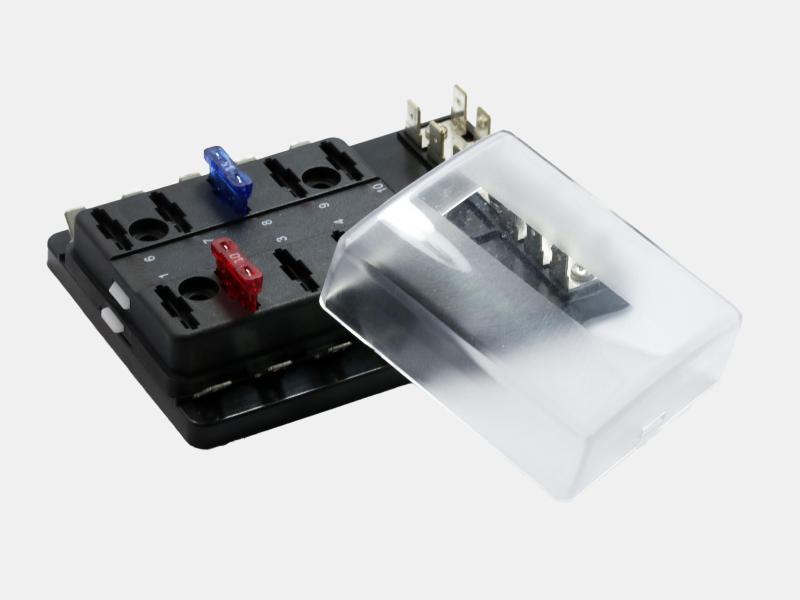

Consolidates 10 circuitsWith ground busComes with clear, insulating cover
Voltage Rating32VDC
Current Rating (Per Circuit)30A
Current Rating (Max Input)100A
Features and Application
- This fuse block compactly supplies power and grounding to new accessories and is convenient in boats or RVs that don’t have a chassis ground type system.
- It provides circuit protection for 10 circuits with Regular (ATO/ATC style) blade fuses, with a rated current of 30A per position and 100A total for the fuse block.
- Comes with an insulating cover that offers protection against short circuits, as well as from dirt, dust, and splashes.
Dimensions and 3D view
Dimensions
Length4.85
Height0.83
Width3.47
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length4.85
Height0.83
Width3.47
UnitInch
