Key Specifications and Ratings
Consolidates 4 circuitsQuick connect input terminalsComes with clear, insulating coverRetail Pack Quantity: 1PC
Voltage Rating32VDC
Current Rating (Per Circuit)30A
Current Rating (Max Input)100A
Features and Application

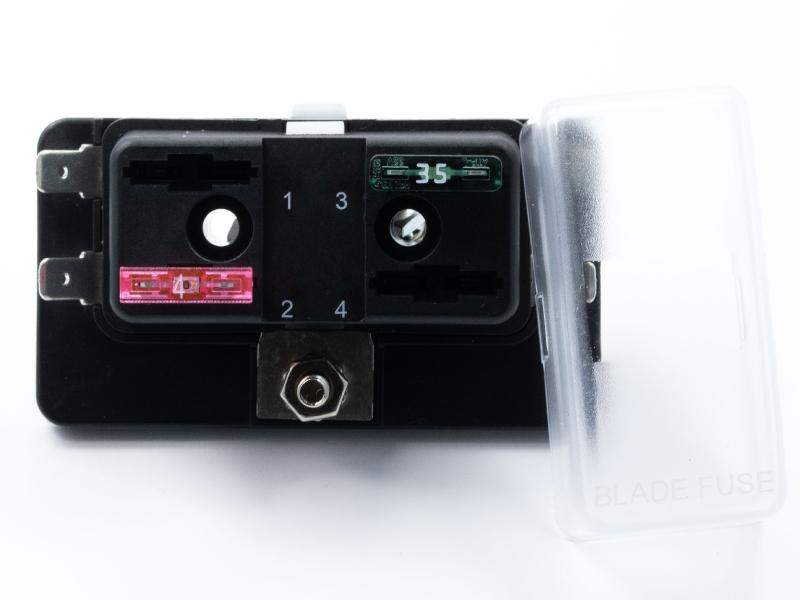

- Fuse block used to distribute power to automotive electrical systems and provide compact circuit protection for 4 circuits with Regular (ATO/ATC style) blade fuses.
- The rated current is 30A per position and 100A total for the fuse block.
- Comes with an insulating cover that offers protection against short circuits, as well as from dirt, dust, and splashes.
- NEW: Select products are available in attractive retail packaging including blister & clamshell packs and convenient multi amperage assortment packs.
Dimensions and 3D view
Dimensions
Length1.85
Height0.83
Width3.35
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length1.85
Height0.83
Width3.35
UnitInch
