Key Specifications and Ratings
Consolidates 6 circuitsWith ground busOptional cover available
Voltage Rating32VDC
Current Rating (Per Circuit)25A
Current Rating (Max Input)100A
Features and Application
- This fuse block compactly supplies power and grounding to new accessories and is convenient in boats or RVs that don’t have a chassis ground type system.
- It provides circuit protection for 6 circuits with Regular (ATO/ATC style) blade fuses, with a rated current of 25A per position and 100A total for the fuse block.

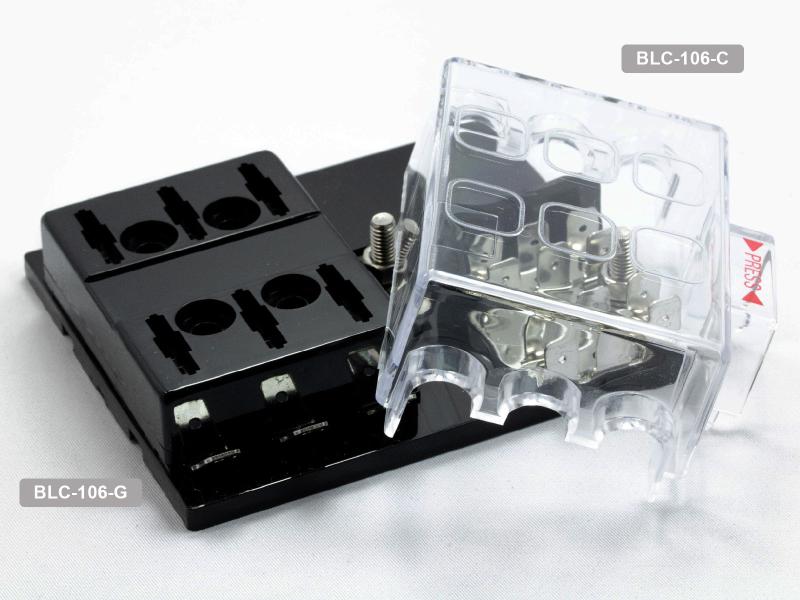

- BLC-106-C insulating cover is available to protect against accidental short circuits, as well as from dirt, dust, and splashes.
Dimensions and 3D view
Dimensions
Length3.8
Height0.83
Width3.36
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length3.8
Height0.83
Width3.36
UnitInch
