Key Specifications and Ratings
Consolidates 4 circuitsLED blown fuse indicatorComes with clear, insulating coverRetail Pack Quantity: 1PC
Voltage Rating32VDC
Current Rating (Per Circuit)30A
Current Rating (Max Input)100A
Features and Application

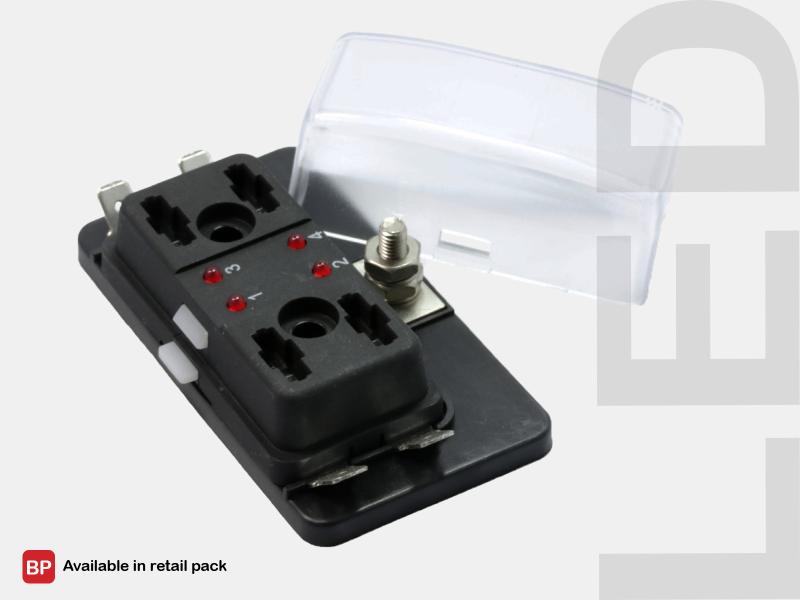

- Fuse block for Mini style blade fuses used in DC distribution systems to provide compact circuit protection for 4 circuits.
- The rated current is 30A per position and 100A total for the fuse block.

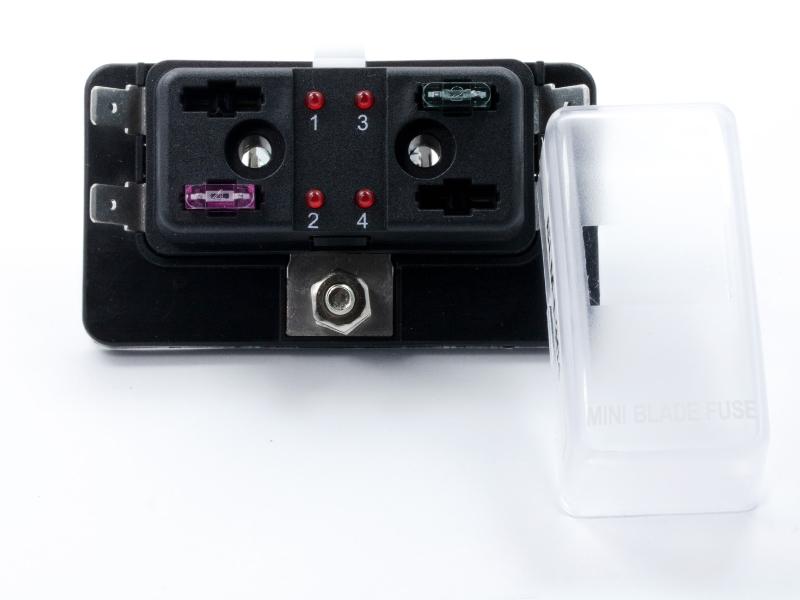

- With an LED light for each circuit that illuminates when the circuit opens and the fuse needs to be replaced, reducing the time required to find and replace a faulty fuse.
- Comes with an insulating cover that offers protection against short circuits, as well as from dirt, dust, and splashes.
- NEW: Select products are available in attractive retail packaging including blister & clamshell packs and convenient multi amperage assortment packs.
Dimensions and 3D view
Dimensions
Length1.85
Height0.83
Width3.35
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length1.85
Height0.83
Width3.35
UnitInch
