Key Specifications and Ratings

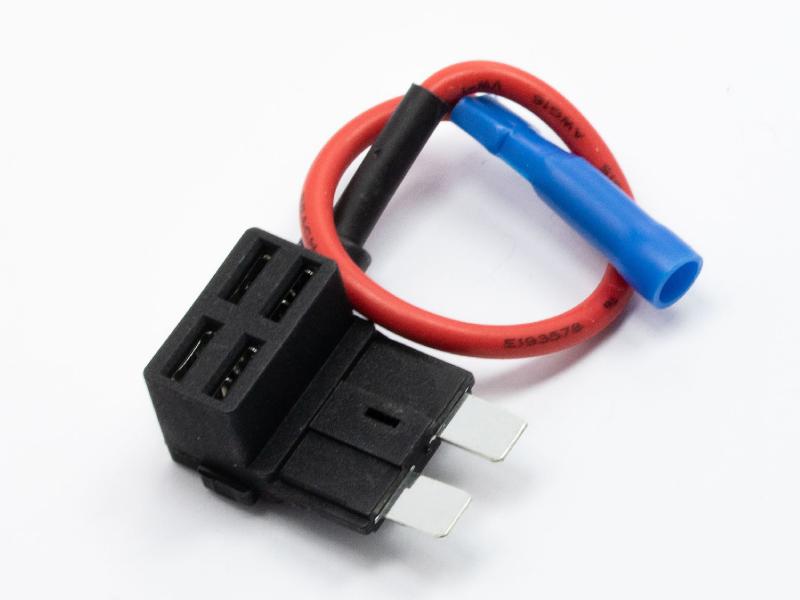

Combines two fuses into one slotRight hand exitWith a butt-splice connector Retail Pack Quantity: 1PC
Voltage Rating250VAC 125VDC
Current Rating (Combined Circuits)30A
Current Rating (Auxiliar Circuit)10A
Wire Gauge#16AWG
Wire ColorsRed
Wire Length5 Inches
Features and Application
- When short on space in a fuse block but have additional accessories to protect, this lightweight Add-A-Fuse turns one fuse slot in a fuse block into 2 slots to protect additional accessories.
- More circuits are gained, and both the new and existing circuits are fully protected by separate fuses.
- No cutting or splicing necessary since they come with built-in butt splice connectors for easy wiring.

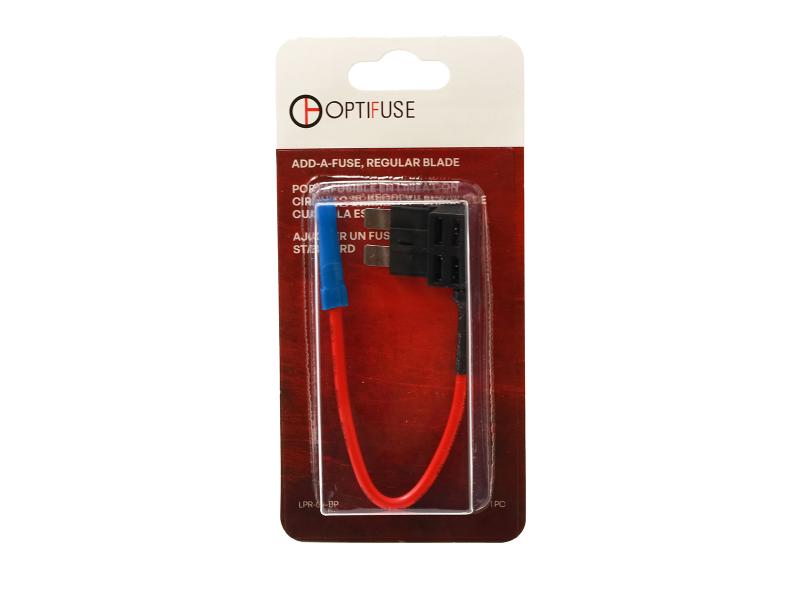

- NEW: Select products are available in attractive retail packaging including blister & clamshell packs and convenient multi amperage assortment packs.
Dimensions and 3D view
Dimensions
Length0.73
Height0.4
Width1.13
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.73
Height0.4
Width1.13
UnitInch
