Key Specifications and Ratings

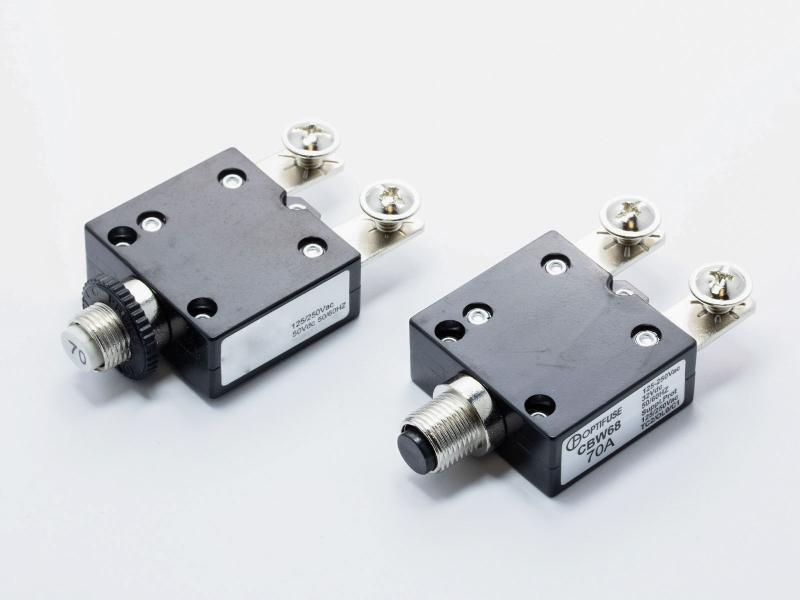

Push to ResetSupplementary circuit protectionAC/DC ratings
Voltage Rating250VAC 32VDC
Current Rating40A to 80A
Interrupt Rating1000A AC 300A DC
Features and Application
- Designed for supplementary circuit protection where branch circuit protection exists or is not required, it provides overload protection only and must be used with an upstream fuse that provides short circuit protection.
- Commonly used for applications where the product is plugged into utility power or has high current AC or DC requirements, such as industrial equipment, motor homes, and marine applications.
- Manually resettable, it is available with a variety of design options like button color, bushing type, mounting hardware, terminal configurations and protective splashproof boots.
Dimensions and 3D view
Dimensions
Length1.38
Height2.37
Width0.57
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length1.38
Height2.37
Width0.57
UnitInch
