Key Specifications and Ratings
Automatic resetColor coded to amp ratingsVersatile ATO/ATC style footprintRetail Pack Quantity: 1PC
Voltage Rating14VDC
Current Rating5A to 30A
Interrupt Rating 450A DC
Features and Application
- Recommended for most commercial applications where downtime can be costly and resettability is needed.
- Conforms to the SAE J553 standard for circuit breaker performance and is intended to replace a Regular (ATO/ATC style) blade fuse, such as the OptiFuse APR and ANR series.

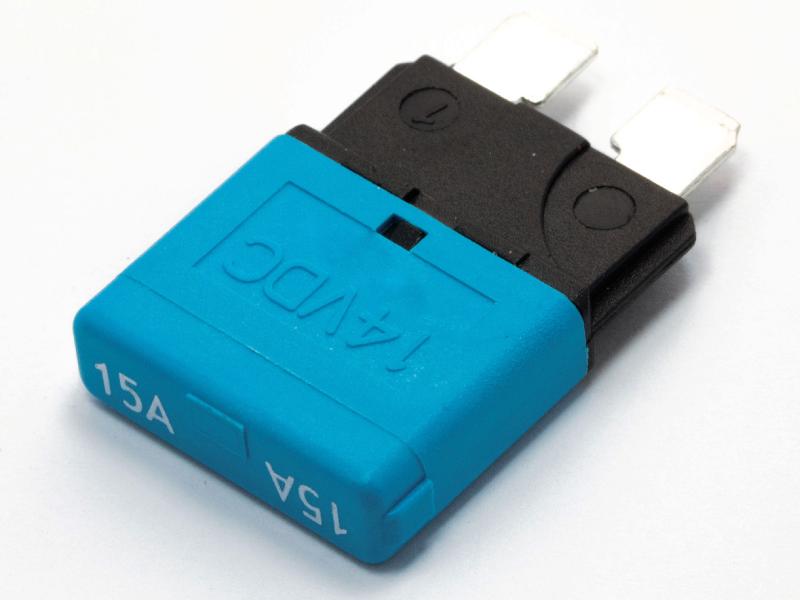

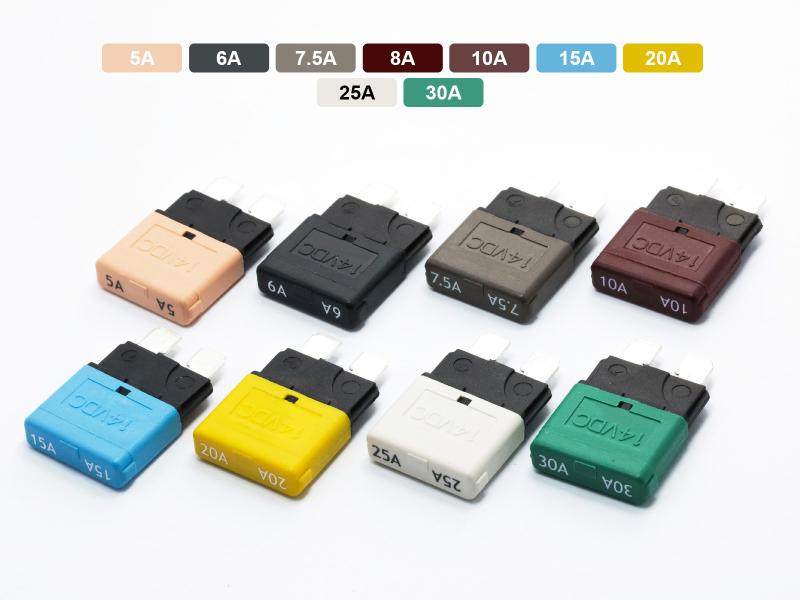

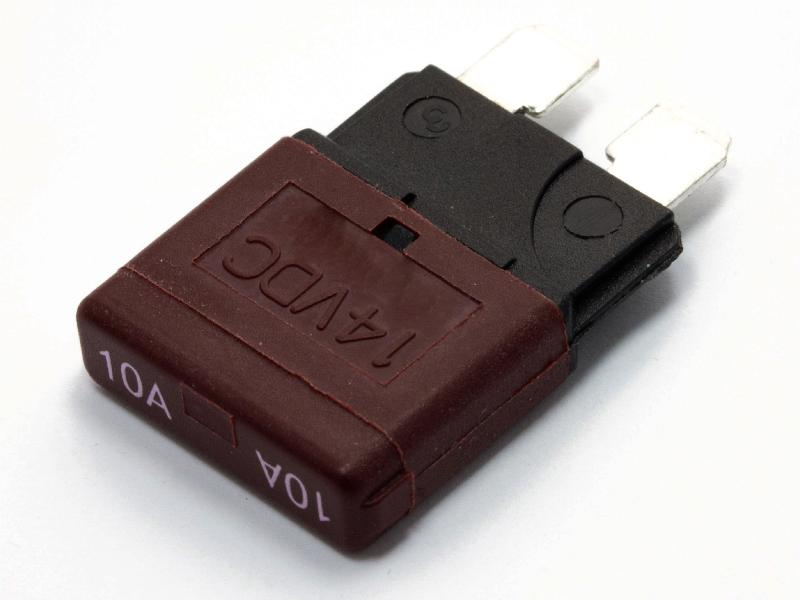

- Designed with a thermoplastic body that is color-coded to match the corresponding fuse — for example, a red fuse (10A) can be conveniently replaced with a red circuit breaker (10A).

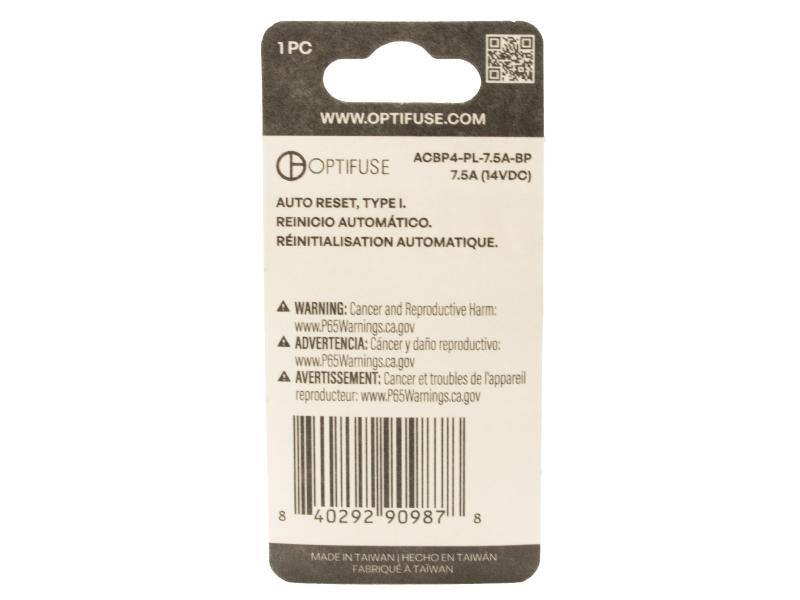

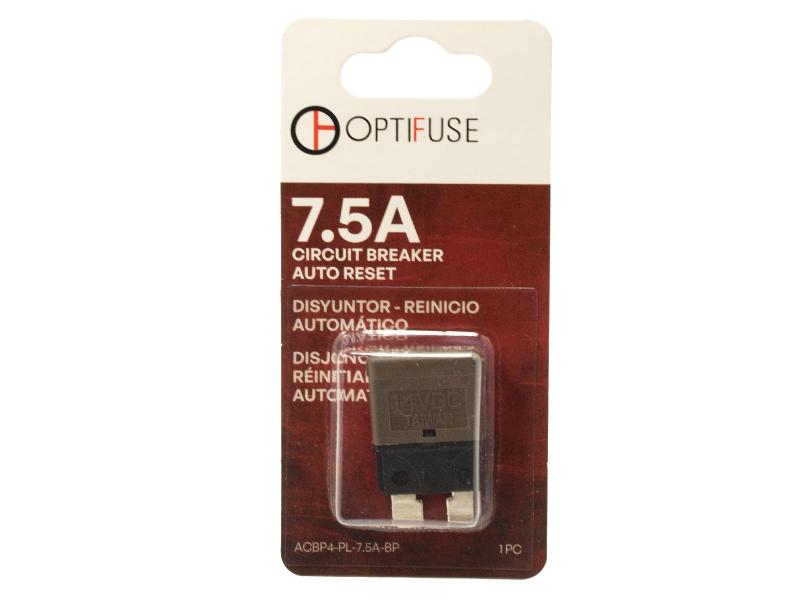

- NEW: Select products are available in attractive retail packaging including blister & clamshell packs and convenient multi amperage assortment packs.
Dimensions and 3D view
Dimensions
Length0.76
Height0.24
Width1.22
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length0.76
Height0.24
Width1.22
UnitInch
