Key Specifications and Ratings
Manual resetNo mounting bracketMarine rated
Voltage Rating32VDC
Current Rating6A to 50A
Interrupt Rating 200A DC
Features and Application
- Time-saving and cost-effective solution to protect auxiliary circuits on RVs, marine craft, emergency vehicles and heavy-duty trucks.

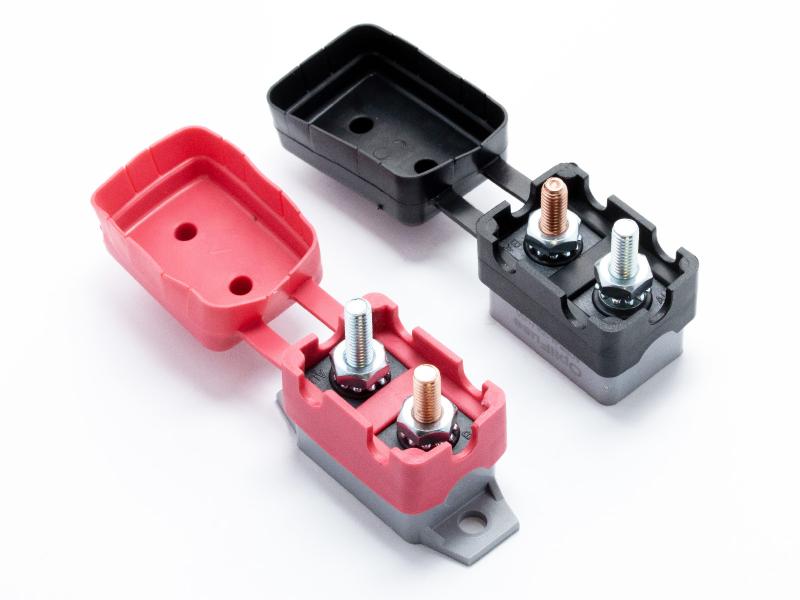

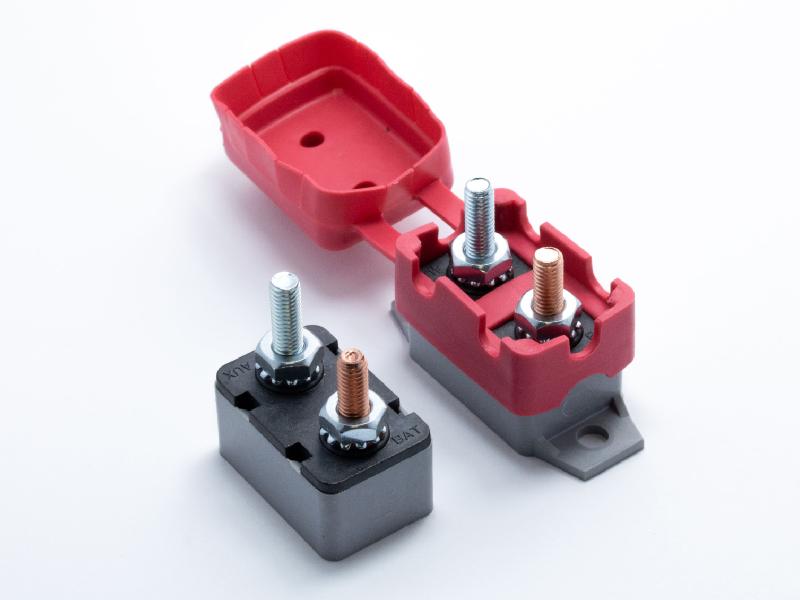

- Conforms to the SAE J553 standard for circuit breaker performance and is designed with a plastic housing that is IP63 rated for dirt, dust, and splash resistance, with optional waterproofing via an add-on sealing cover for stud protection.
- Ignition rated and SAE J1171 compliant for use in marine engine compartments.
Dimensions and 3D view
Dimensions
Length1.25
Height1.3
Width0.8
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length1.25
Height1.3
Width0.8
UnitInch
