Key Specifications and Ratings
Automatic resetNo mounting bracketMarine rated
Voltage Rating32VDC
Current Rating6A to 50A
Interrupt Rating 200A DC
Features and Application
- Time-saving and cost-effective solution to protect auxiliary circuits on RVs, marine craft, emergency vehicles and heavy-duty trucks.

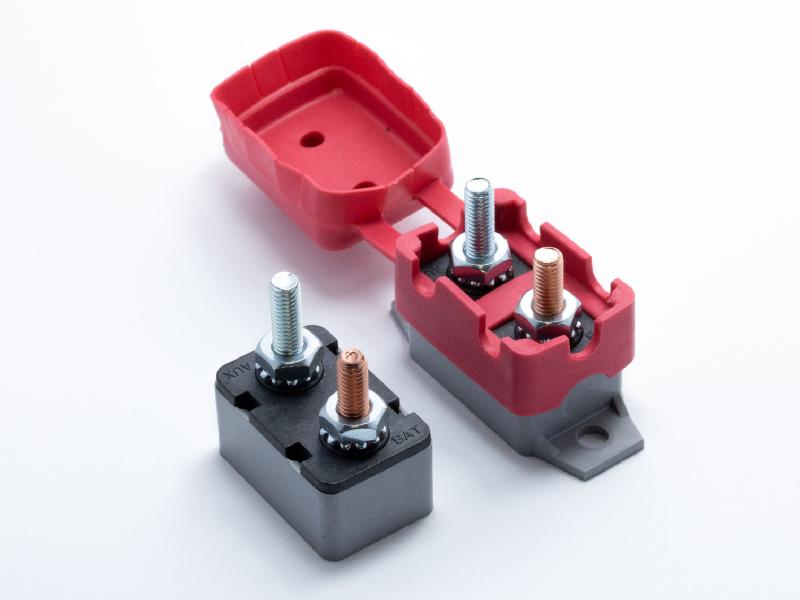

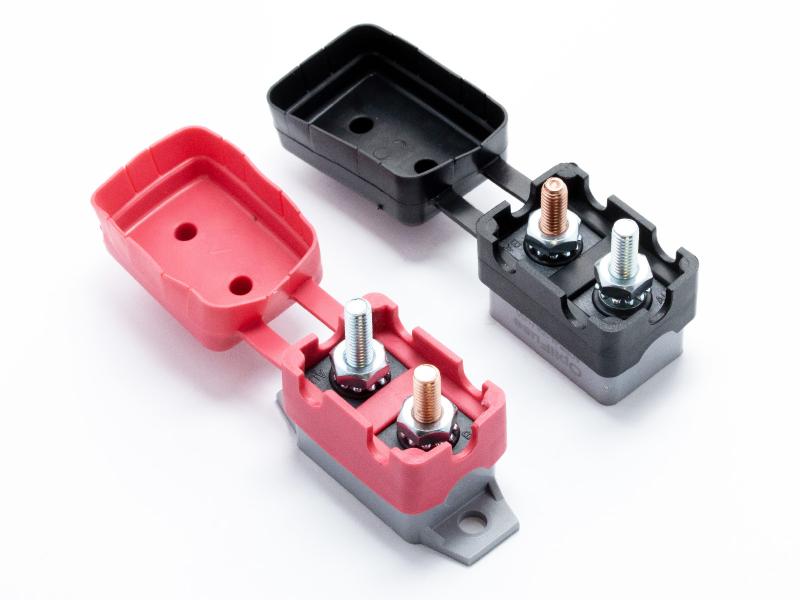

- Conforms to the SAE J553 standard for circuit breaker performance and is designed with a plastic housing that is IP63 rated for dirt, dust, and splash resistance, with optional waterproofing via an add-on sealing cover for stud protection.

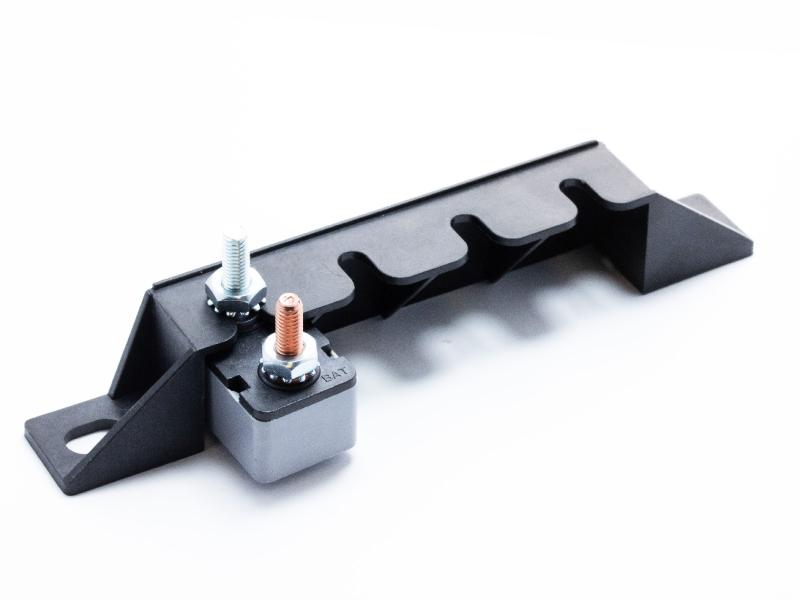

- Ignition rated and SAE J1171 compliant for use in marine engine compartments, this series is easily mounted alongside similar non-bracket breakers in our CBB mounting brackets.
Dimensions and 3D view
Dimensions
Length1.25
Height1.3
Width0.8
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length1.25
Height1.3
Width0.8
UnitInch
