Key Specifications and Ratings

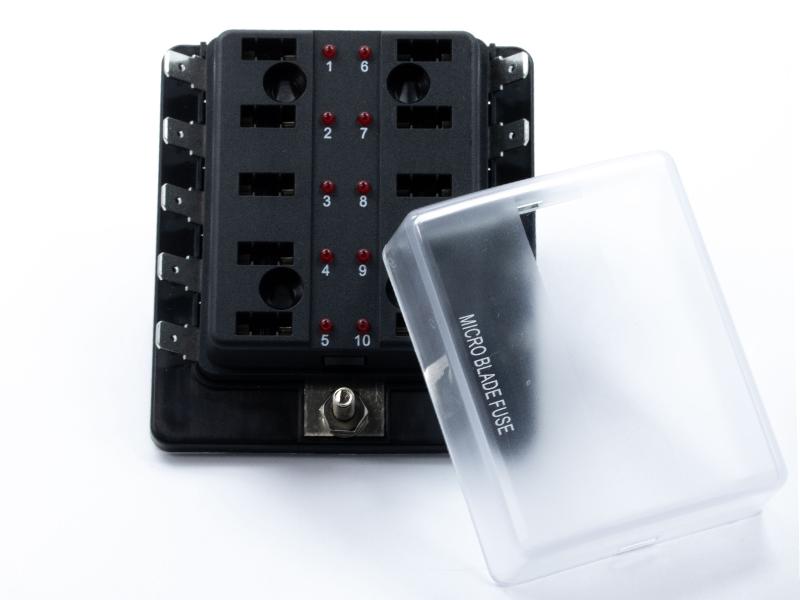

Consolidates 10 circuitsLED blown fuse indicatorComes with clear, insulating cover
Voltage Rating32VDC
Current Rating (Per Circuit)30A
Current Rating (Max Input)100A
Features and Application
  • Designed to distribute power to automotive electrical systems and provide circuit protection for 10 circuits with Mini - Low Profile style blade fuses.
  • The rated current is 30A per position and 100A total for the fuse block.
  • With an LED light for each circuit that illuminates when the fuse opens and needs to be replaced, reducing the time required to find and replace a faulty fuse.
  • Comes with an insulating cover that offers protection against short circuits, as well as from dirt, dust, and splashes.
Dimensions and 3D view
Dimensions
Length3.82
Height0.83
Width3.35
UnitInch
Custom solutions
Dimensions and 3D view
Custom solutions
Dimensions
Length3.82
Height0.83
Width3.35
UnitInch
