Fuses
Surface Mount Fuses


FCM-R

FCM-R

Fast Acting Square Ceramic Surface Mount Fuse

A high performance fast-acting current-limiting surface mount fuse used in printed circuit board component protecting applications.

 Square Ceramic - Round Terminals

 Electrical Specifications
 100mA ~ 15A

  spec sheet
Time Characteristics
100% 4h min hold time   100mA-15A
200% 5s
20s
max hold time  100mA-10A
max hold time  12A-15A



Interrupting Ratings
100mA-10A 100A  @ 125V AC/DC
12A-15A 50A  @ 65V DC



Agency Standards & Listings
  UR

 Mounting
 Surface mounting only

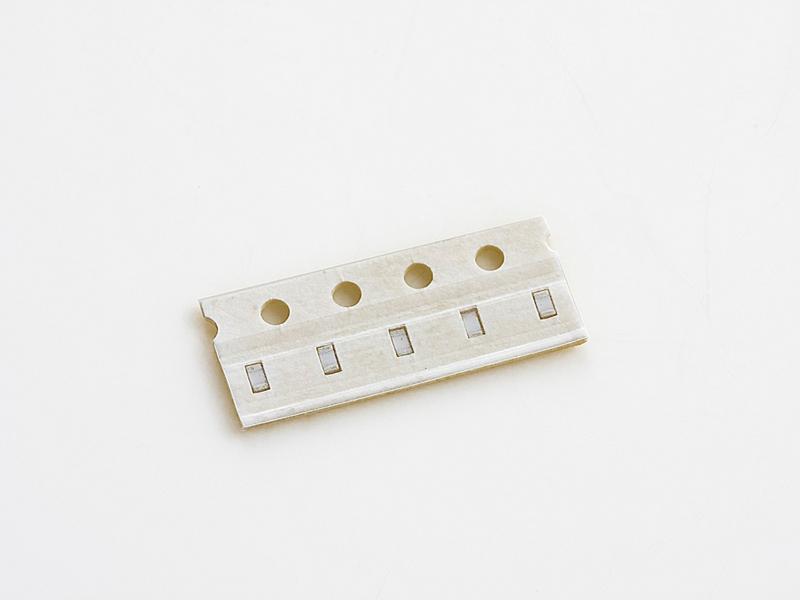

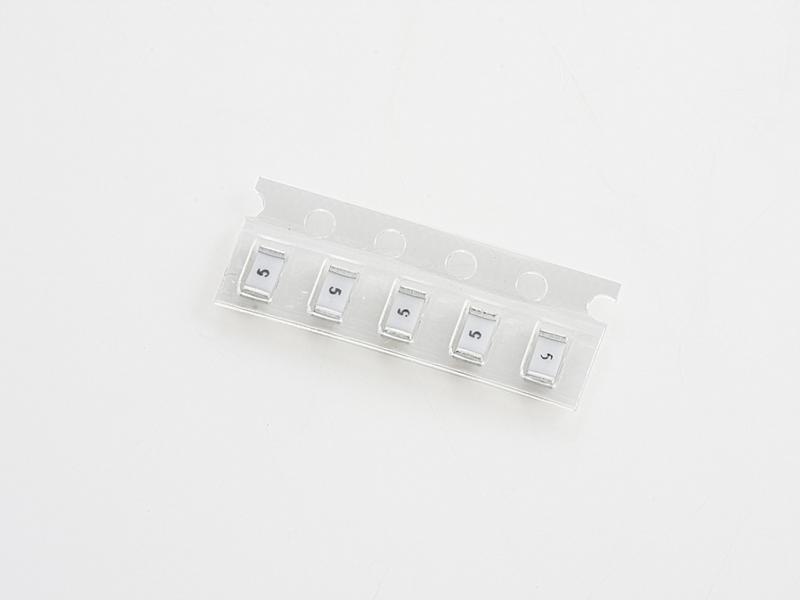

 Other Surface Mount Fuses
